S2 Robotic Case Packer
No matter if you require a single or multi-piece picker, we have the solution you. Our Blue Onyx System - S2 Robotic Case Packer is tailored to suit your specific requirements. Discover the next level of case packing with advanced machine that combines durability and versatility. By choosing this machine, you’re not just making an investment; you’re embracing a legacy of excellence.
Case Types
-
RSC (Regular Slotted Container) – Standard shipping case with flaps that meet in the middle
-
HSC (Half Slotted Container) – Open-top cases ideal for top-loading or display applications
-
Display-Ready Cases – Designed for shelf presentation with easy-open features
-
Tote-Compatible Cases – Designed to fit reusable plastic totes for distribution systems
-
Shelf-Ready Cases – Packaging that transforms easily into retail shelf displays
-
Die-Cut Custom Cases – Unique designs tailored for product visibility or protection
-
Trays and Lids – Bottom trays with optional top covers for secure packing and easy access
-
Auto-Bottom or Pop-Up Cases – Pre-glued designs for quick erecting and loading
-
Corner Post Cases – Reinforced cases for added strength in stacking
-
Partitioned Cases – Internal dividers for fragile or multi-component products

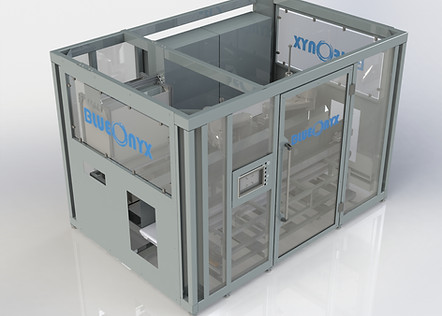

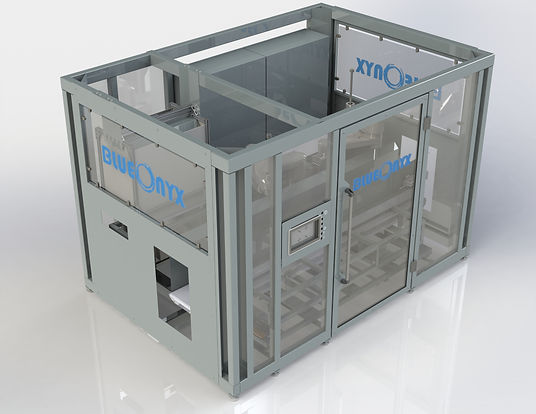

S2 Case Packer
Dual SCARA Robot - Rates up to 120PPM
Standard Equipment Specifications
Options:
-
Integrated Case Erector
-
Integrated Case Sealer
-
Integrated Check Weigh & Reject System
-
Vertical Packing (Soldier Pack)
-
Stainless Steel Frame
-
On Board Compressor/Vacuum Blower
-
Case Labeling
-
ERP Integration
-
Additional HMI Interfaces
Rates
Single Pick: 80 ppm
Multi Pick: 120 ppm
Product Weight
Vacuum:: < 7 kg
Gripper: <= 10 kg
Features:
-
Robust Welded & Powder Coated Steel Frame
-
Allen Bradley or Siemens Controls
-
Engineered Robot End-of-Arm Tooling
-
Ignition Based HMI
-
Integrated Safety System
-
Minimal Change Over Time
-
Integrated Vision System
-
Toolless Changeover
-
Automatic Case Conveyance Width Adjustment
-
Storage for 100+ Product Recipes
-
Machine Status Lighting
-
Remote Diagnostics
-
Audible Alarm System
-
Modular Design for Future Robot Additions
Power Requirements
480V 3ph 60Hz
30A Service
Equipment Highlights
Robot Suppliers
Don't lose a step deviating from your robot standard. Sprinter systems are backed by Blue Onyx Systems engineers that are certified and proficient in the integration of robotics from the world's major suppliers.
-
ABB
-
Fanuc
-
KUKA
-
Yaskawa
Core Equipment
Take your system to the next level and raise your overall return on investment by selecting the ideal
core equipment combination for each cell.
-
Pallet Dispensers
-
Slip Sheet Stations
-
Stretch Wrappers
-
Multi-Infeed Conveyance
-
Multi-Outfeed Conveyance
End of Arm Tooling
Assure a solid grip no matter what the packaging type. In standard and non-uniform applications, Blue Onyx Systems robotics palletizing solutions have the perfect end of arm tool solution.
-
Vacuum
-
Claw
-
Gripper
-
Hybrid
-
Bag Handling
Additional Features
Need more precise control? Are industry standards or special processes holding your operation back? Sprinter Palletizers can be equipped with additional offerings to unleash your full potential.
-
Mixed Case Operation
-
Vision Integration
-
Advanced Interface MES/WES
-
Environmental Protection
-
Custom EOAT
